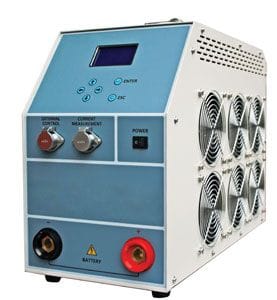

Storage Battery System Sbs 4830S

Product Highlights

• Constant current load bank holds the current set throughout the test
• LED screen displays real time voltage, discharge current and Ah removed
• Units can be paralleled with the SBS-8400 or other load banks
• Easily adjust settings electronically
• 3 adjustable stop points – End system voltage, Discharge time, Discharge capacity (Ah)
• Display LCD (128 x 64 pixels)
• Input During discharge: real time voltage / current / test time / Ah discharged
• User can set: end system voltage / test time / Capacity discharged (Ah)
• Test Type Unit controls the current so it stays where it is set throughout the test
• Protection Over heat / Over load / Over voltage protection with audible alarm and screen warning
• Power Supply 24/48 Vdc modules use DC power supply (from tested battery)
• 125 and 250 Vdc models use AC power supply (110 Vac 60 Hz)
• DC Cables Included – 9 ft long

Each Unit Includes

• Carrying Case
• 9 ft DC cables
• Instruction Manual
