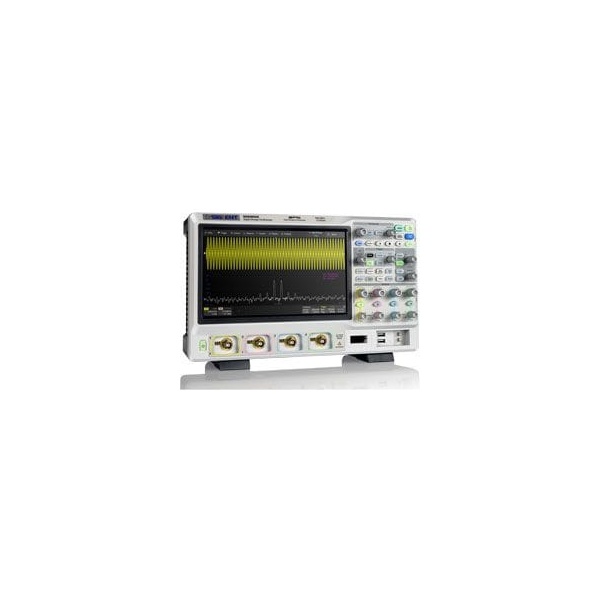

Siglent SDS5104X
Compare Wishlist

Siglent SDS5104X

Sku: SDS5104X

US $4,530

Available in stock

Compare Wishlist
Brand:
Description

Product Highlights

  • 1 GHz, 500 MHz, 350 MHz models with real-time sample rate up to 5 GSa/s
  • SPO technology
    • Waveform capture rates up to 110,000 wfm/s (normal mode), and 480,000 wfm/s (sequence mode)
    • Supports 256-level intensity grading and color temperature display modes
    • Record length up to 250 Mpts
    • Digital trigger system
  • Intelligent trigger: Edge, Slope, Pulse, Window, Runt, Interval, Dropout, Pattern, Qualified and Video (HDTV supported). Trigger zone helps to simplify advanced triggering
  • Serial bus triggering and decoder, supports protocols I2C, SPI, UART, CAN, LIN, CAN FD, FlexRay, I2S and MIL-STD 1553B
  • Low background noise, supports 0.5 mV/div to 10 V/div voltage scales
  • Segmented acquisition (Sequence) mode, dividing the maximum record length into multiple segments (up to 100,000), according to trigger conditions set by the user, with a very small dead time between segments to capture the qualifying event
  • History waveform record (History) function, the maximum recorded waveform length is 100,000 frames
  • Automatic measurement function on 39 parameters, supports statistics with histogram, Gating measurement, Math measurement, History measurement and Ref measurement
  • Math function (2 Mpts FFT, addition, subtraction, multiplication, division, integration, differential, square root), supports math on math
  • Search and Navigate
  • Digital Voltmeter
  • Waveform Histogram
  • High Speed hardware-based Average, Eres (Enhanced Resolution)
  • High Speed hardware-based Mask Test function, with Mask Editor tool for creating user-defined masks
  • 16 digital channels (optional) with maximum waveform capture rate up to 1.25 GSa/s, record length up to 62.5 Mpts
  • 25 MHz function / arbitrary waveform generator, built-in multiple predefined waveforms
  • Large 10.1in TFT-LCD display with 1024 x 600 resolution; Capacitive touch screen supports multi-touch gestures Supports external mouse and keyboard
  • 10 types of one-button shortcuts
  • Multiple interfaces: USB Host, USB Device (USBTMC), LAN (VXI-11, telnet, socket, web), Pass/Fail, Trigger Out, 10 MHz In, 10 MHz Out, VGA output
  • Built-in web server supports remote control by the LAN port using a web browser
  • Supports SCPI remote control commands

    • EachUnit Includes

    • USB cable x1
    • Quick start x1
    • Passive probe x2 (2-ch model); x4 (4-ch model), SP2035A for 350 MHz models and SP3050A for 500 MHz / 1 GHz models
    • Certificate of calibration x1
    • Power cord x1
