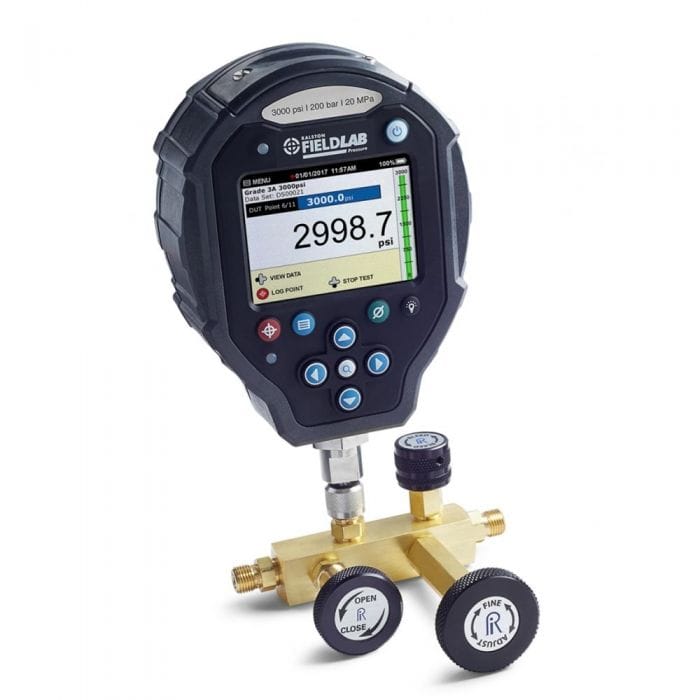

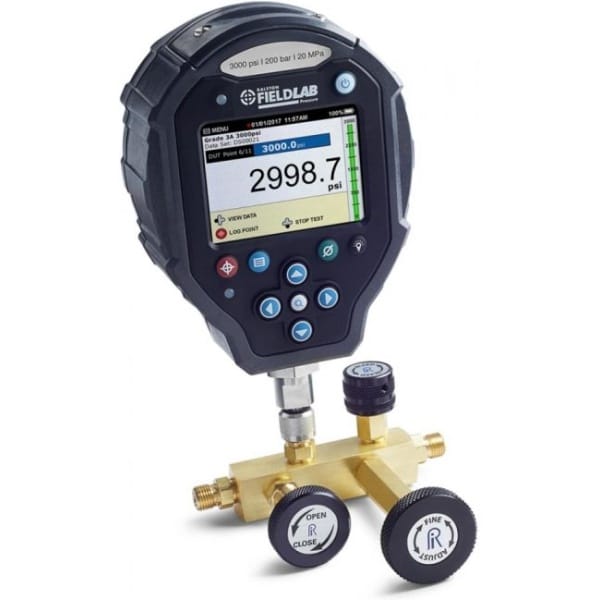

Ralston Instruments QTCM 1KPSIG FL

Product Highlights

Perform static pressure calibrations using nitrogen with included calibration manifold, pressure gauge and hoses.

• 1KPSIG
• Fine adjustment piston provides precise pressure control instead of trying to make adjustments with a pressure regulator and a needle valve
• Soft-seated valves make filling and venting the system very precise
• Compact design allows the manifold, gauge adapter and hoses to fit in the included nylon bag
• Low volume Quick-test hose, gauge adapter and process connection reduce gas usage and make nitrogen cylinders last longer
• Each kit comes with the 0.25% full scale accuracy reference test gauge, hoses and pressure gauge adapter needed so that you can start calibrating within minutes
• Made in U.S.A.

Each Unit Includes

• Manifold – QTCM Assembly (QTCM)
• Hose 1 – Quick-test 6900 psi hose, S.S. hose ends, 6 ft (1.83 m) long (QSQS-HOS-6ft)
• Hose 2 – Quick-test 6900 psi hose, brass hose ends, 3 ft (92 cm) long (QTQT-HOS-3ft)
• Process Connection 1 – 1/4″ male NPT x male Quick-test, no check-valve, brass (QTHA-2MB0)
• Process Connection 2 – 1/4″ male NPT x male Quick-test, no check-valve, brass (QTHA-2MB0)
• Gauge – Pressure FieldLab, 1000 psi / 70 bar / 7 MPa, Female Quick-test bottom connection (FLP1-GP-QF)
