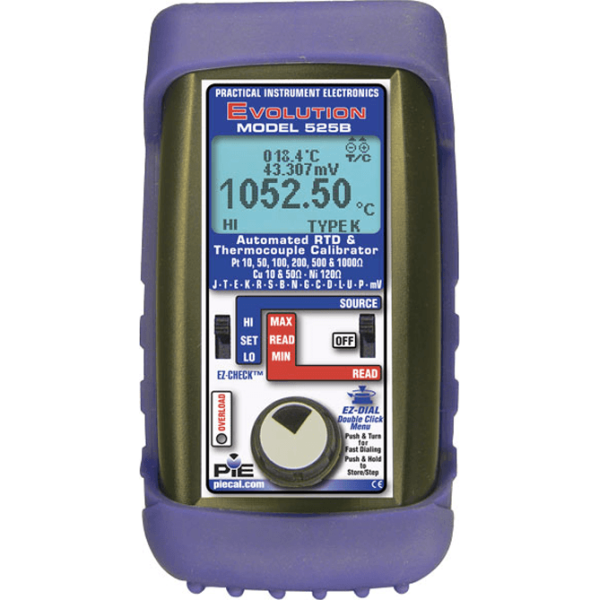

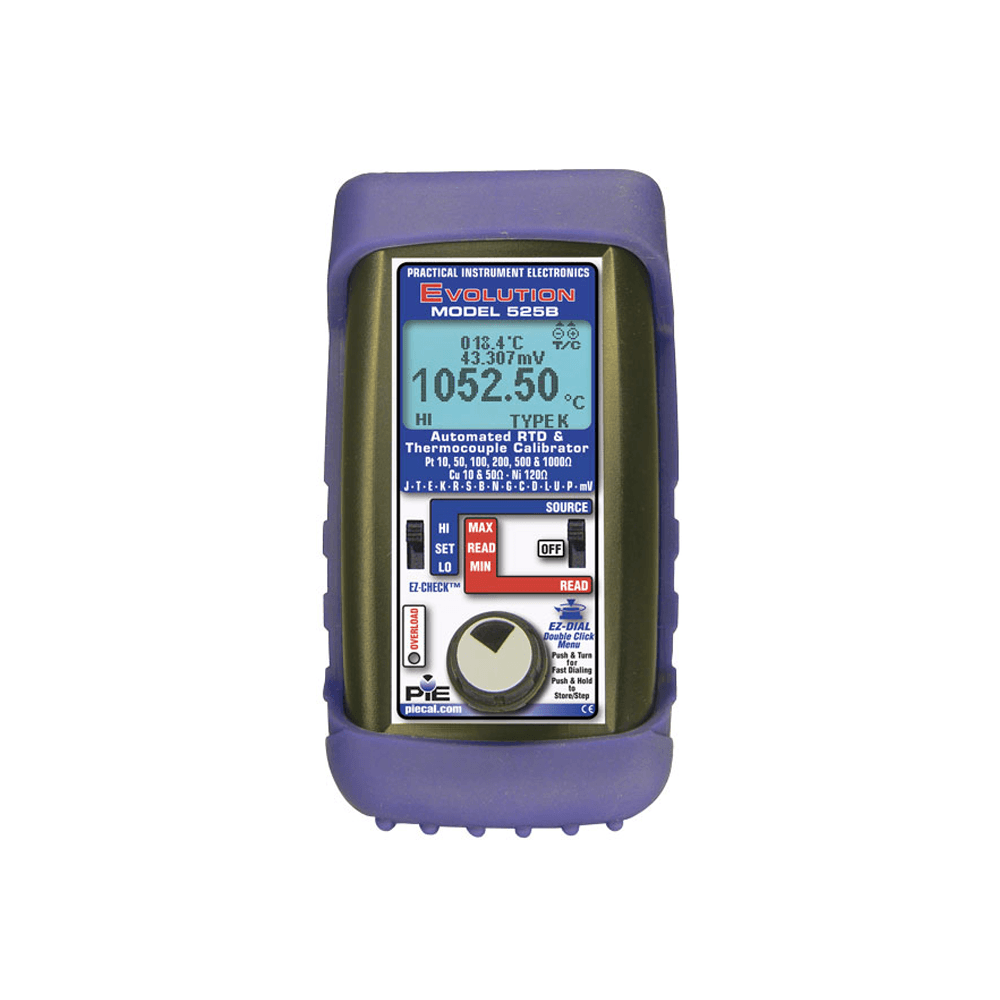

PIE 525B

Product Highlights

• Calibrate T/C instruments to 0.1 & 0.01 °F & °C
  • Types J, K, T, E, R, S, B, N, G, C, D, L (J DIN), U (T DIN) & P (Platinel): -13.000 to 80.000 mV
• Calibrate RTD instruments to 0.1 & 0.01 °F & °C
  • Pt 10, 50, 100, 200, 500 & 1000 Ohm (3850)
  • Pt 100 Ohm (alpha=3902, 3916, 3926)
  • Cu 10 & 50 Ohm and Ni 120 Ohm
• Calibrate with Confidence
  • Resolution to 0.01 °F & °C; Accurate to 0.2°C
  • Cold Junction Sensor Accurate to 0.05°C
• Perform Heat Treating Surveys & Accuracy Tests
  • Meets or exceeds the requirement of AMS 2750 as both a Secondary Standard Instrument and as a Field Test Instrument
• Troubleshoot RTD Sensors & Instruments
  • Automatic detection of 2, 3 or 4 wire connections indicates when individual wire connections are open
  • Verify proper instrument operation by measuring the excitation current
• Faster Calibrations
  • Instantly select three outputs with EZ-CHECK switch
  • Easily find trip points with two speed EZ-DIAL knob & Automatic Stepping
• Easily Change T/C Types & Scale
  • Double click to select T/C type & °F & °C
• Use in the Plant, Field or Shop
  • Includes Rubber Boot and mV Test Leads
  • Low profile switches resist accidental damage
  • Brass screws for T/C wires plus mini T/C socket
• Easy-to-Read Display
  • Turn on the backlight to read in dark areas of the plant
• Simple “No Tool” Battery Changes
  • Four inexpensive “AA” batteries
• Verify Resistance, Cold Junction Temperature & Output
  • Secondary Display of Resistance for RTDs and compensated millivolt setting and cold junction temperature for T/C

Each Unit Includes

• Four “AA” Alkaline batteries
• Certificate of Calibration Card
• Rubber Boot Part No. 020-0213
• Deluxe Hands Free Carrying Case Part No. 020-0211
• Evolution mA/V Test Leads Part No. 020-0207 – 1 Red & 1 Black Lead with Banana Plugs & Alligator Clips
• Evolution RTD Wire Kit Part No. 020-0208 – 2 Red & 2 Black Leads with Banana Plugs & Spade Lugs
