Mitutoyo Ic2000

Product Highlights

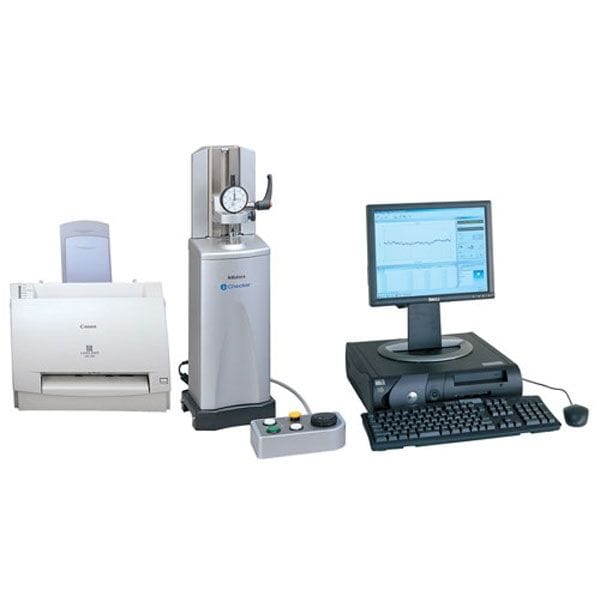

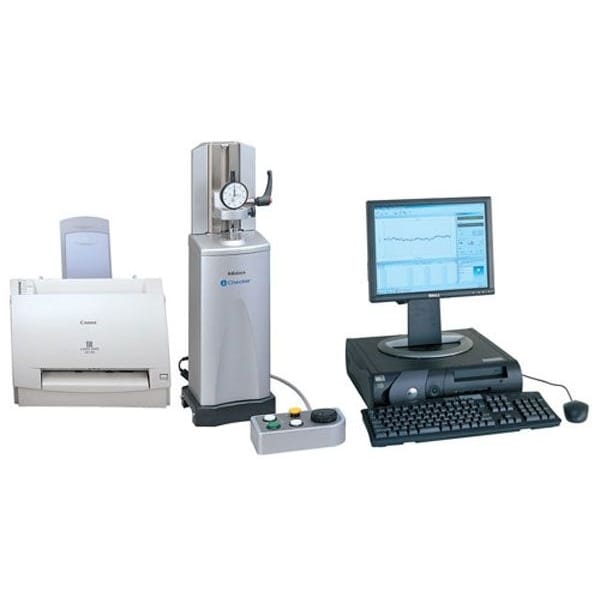

The i-Checker is specially designed to calibrate measuring accuracy of dial indicators, dial test indicators, and other electronic comparison gage heads with a stroke of up to 100mm (4″).

• ±(0.2 L/100)µm indication accuracy.
• Directly inspects an indicator with a stroke of up to 100mm (4″). The dial test indicator, bore gage and lever-type inductive head can be inspected with optional accessories.
• Adjustment of the measurement position is very easily accomplished because of semi-automatic measurement and full automatic measurement functions.
• Creates and prints out the simple inspection certificate.
• Saves inspection result as CSV file for reusable inspection result by any kind of software.
• Measuring Range 0-4in 0-100mm
• Resolution 1.24uin/0.02um
• Accuracy Vertical (0.2 L/100)um Lateral (0.3 2L/100)umum
• Feed Speed (max) 4mm/sec
• Drive Method Motor Drive
• Measuring Unit Reflective-type metal linear encoder
• Mass 44lbs
• Power Supply 100 VAC to 240 VAC 10%,50/60hz
• Dimensions 7.24×8.86×20.94in 184x225x532mm
• Measurement Method Semiautomatic measurement
