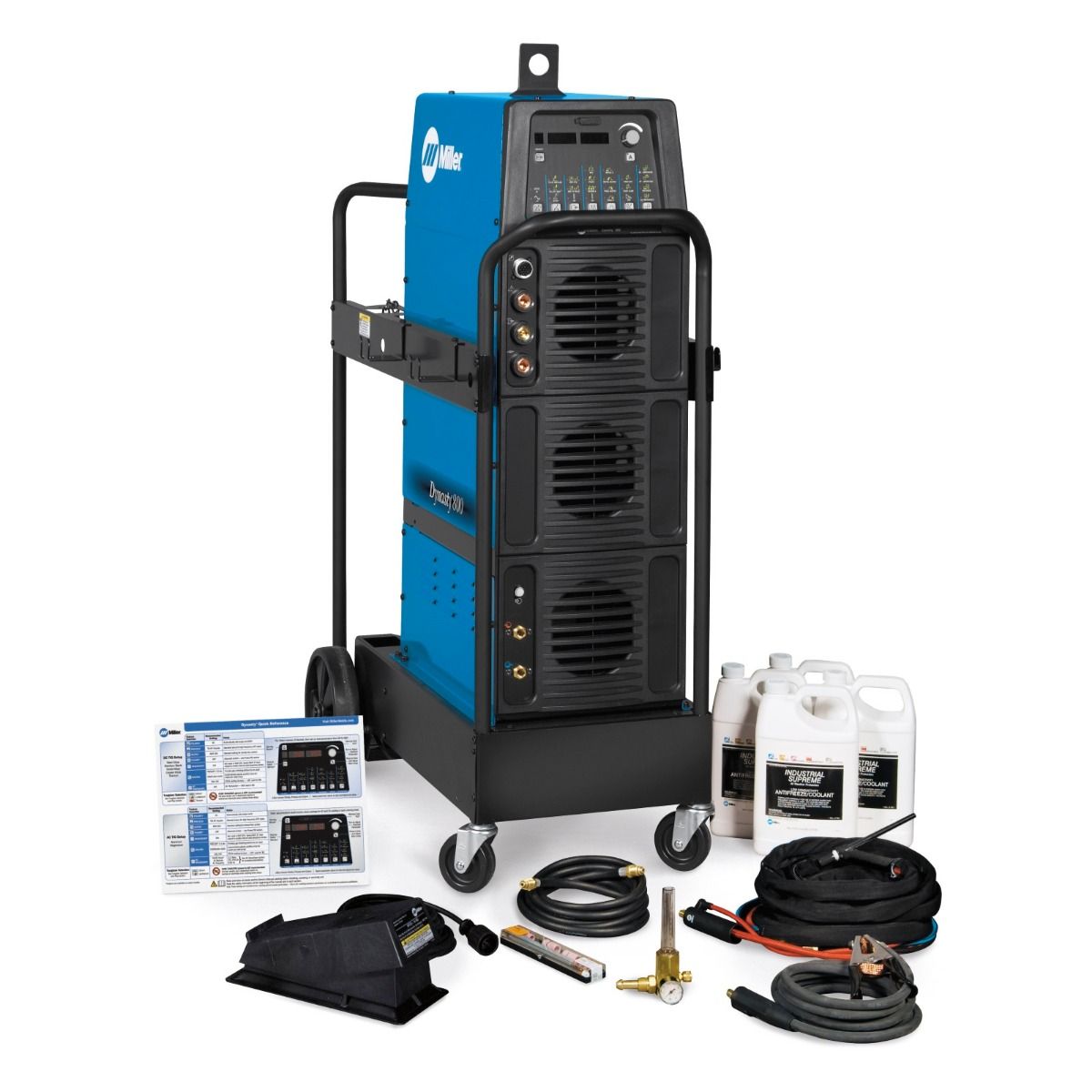

Miller Dynasty 800 Tig Welder And Water-Cooled Package With Foot Control 951696

Miller Dynasty 800 Tig Welder And Water-Cooled Package With Foot Control 951696 Specs

• Brand: Miller
• Model: Dynasty 800 TIG Welder Water-Cooled Package with Foot Control
• MPN: 951696
• Process: TIG (GTAW), Stick (SMAW)
• Output Range (TIG): 3 – 800 Amps
• Output Range (Stick): 5 – 800 Amps
• Input Power: 380–575V, 3-Phase, Auto-Line
• Duty Cycle: 100% @ 800A (3-Phase, TIG)
• Cooling: Water-Cooled
• Foot Control: Included (Wireless Compatible)
• Waveforms: Sine, Triangle, Square, Soft Square
• AC Frequency Control: 20–400 Hz
• AC Balance Control: Adjustable
• Arc Start: HF Start, Lift-Arc
• Pulsed Welding: Yes (Adjustable Parameters)
• Memory Settings: Program Storage and Recall
• Display: Digital with Menu Navigation
• Dimensions: 25.6 in H × 13.25 in W × 28.5 in D
• Weight: Approx. 180 lbs (82 kg)
• Applications: Heavy Industrial, Shipyards, Pipe Welding, Structural Steel
• Compliance: CSA, NEMA Rated
• Warranty: 3-Year Miller True Blue Warranty
• Condition: New
• Google Product Category: 2920 (Welding Machines)
