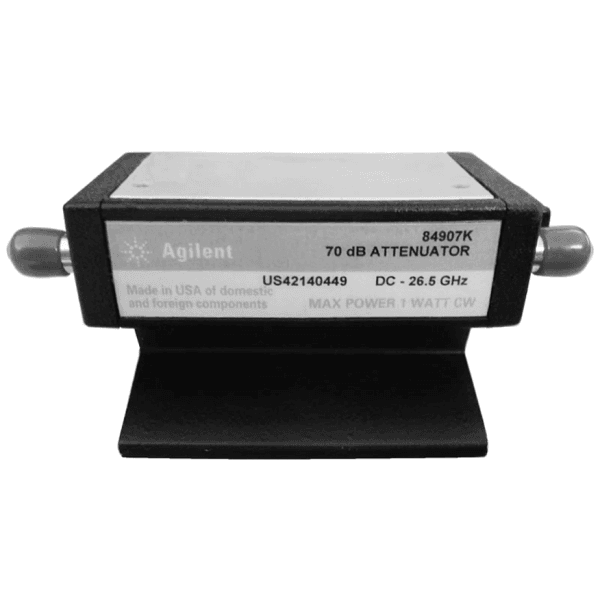

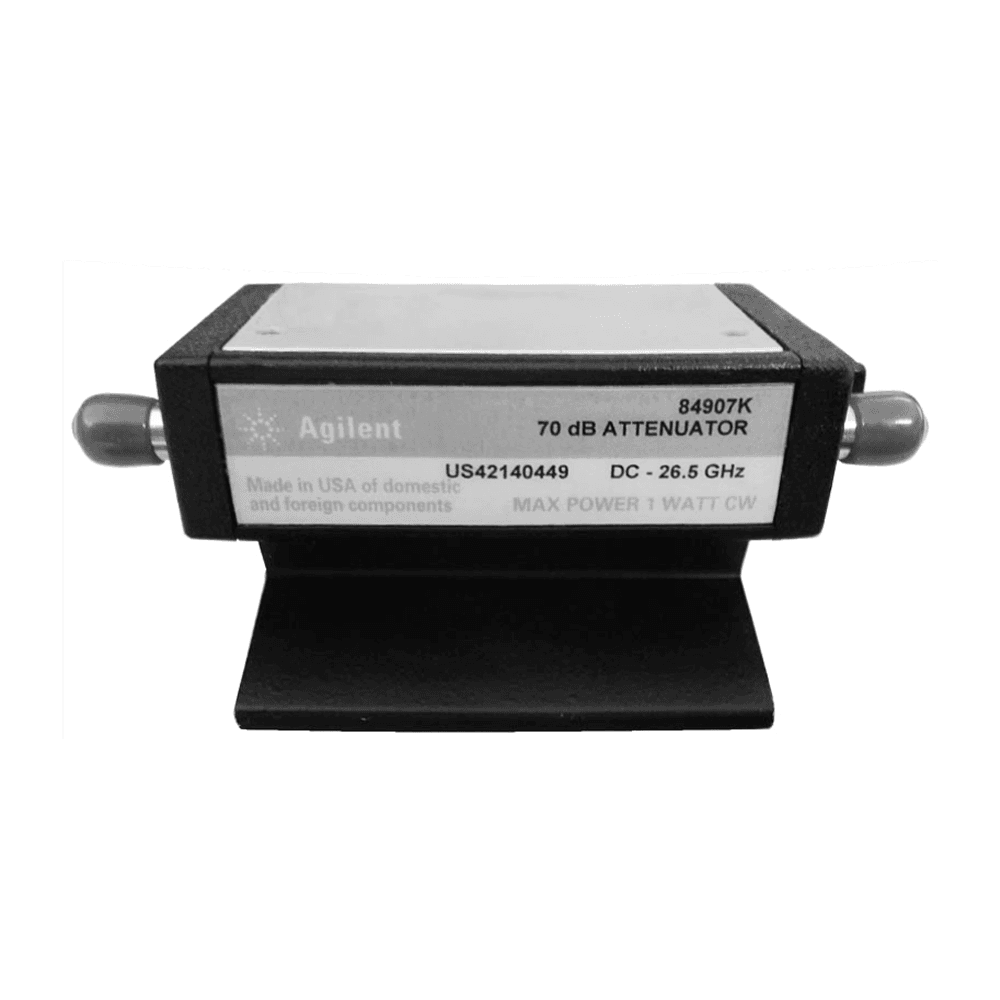

Keysight Technologies 84907K

Product Highlights

• Frequency range: dc to 26.5 GHz
• Attenuation range: 0 to 70 dB, 10 dB steps
• Insertion loss at 0 dB: 0.6 dB   0.03 dB/GHz
• Maximum SWR: 1.25 to 12.4 GHz, 1.5 to 26.5 GHz
• Repeatability life: 0.03 dB maximum, 5 million cycles per section
• Maximum RF input power: 1 W (average), 100 W (peak)
• Connector type: choice of 3.5 mm female, 3.5 mm male/female
• Programming connector: 10-pin sockets
