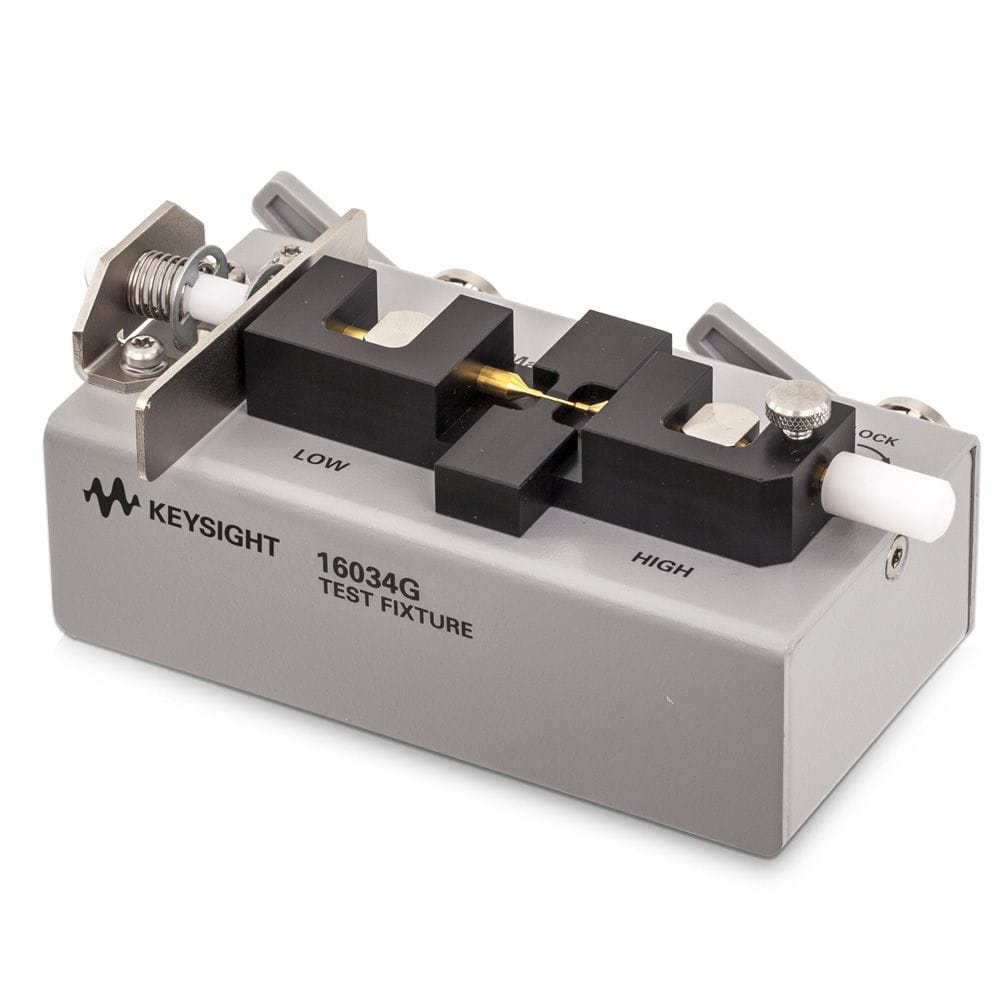

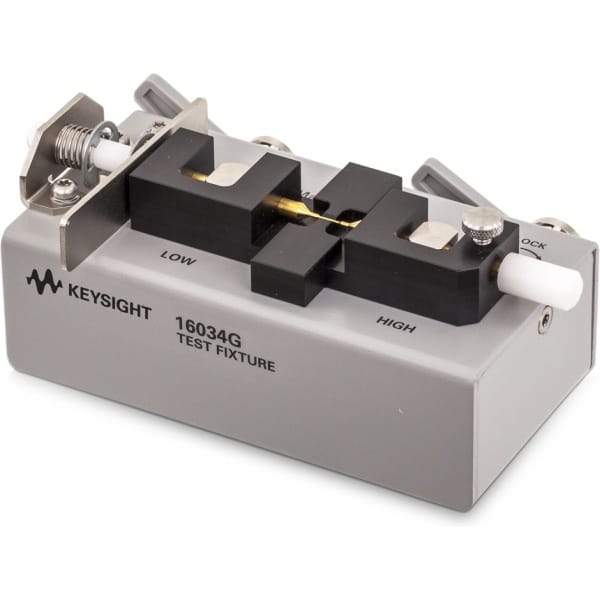

Keysight Technologies 16034G

Product Highlights

• DUT Dimensions: (minimum applicable)0.6mm(L)x0.3mm(W)
• Measurement Instrument: 4192A, 4294A, 4263B, 4268A, 4278A, 4279A, 4284A, 4285A, E4980A
• Frequency: DC to 40MHz (up to 110MHz with OPEN/SHORT/LOAD Compensation)
• DC Bias: -40V to  40V
• Operating Temperature: 0 to 55degC
• Terminal Connection: BNC, 4 terminal-pair
• Dimensions(approx.): 120(W) x 50(H) x 70(D)mm
