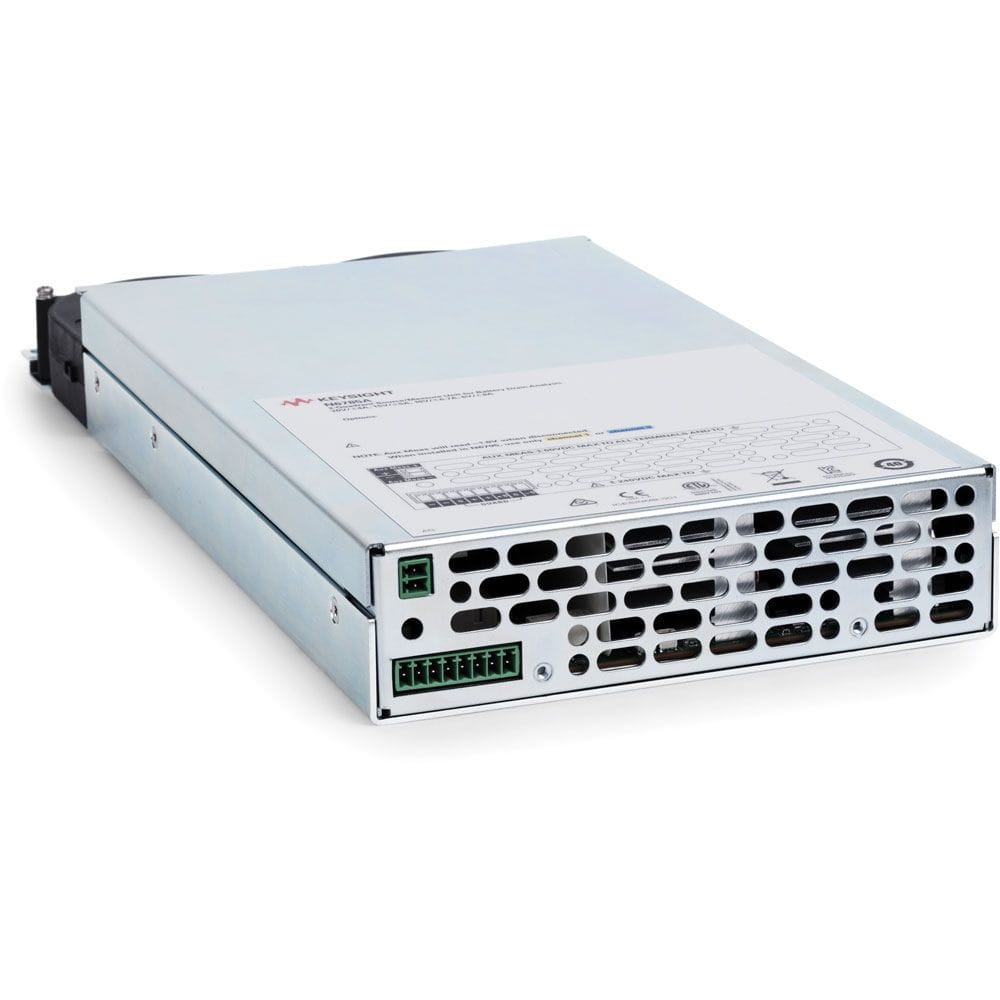

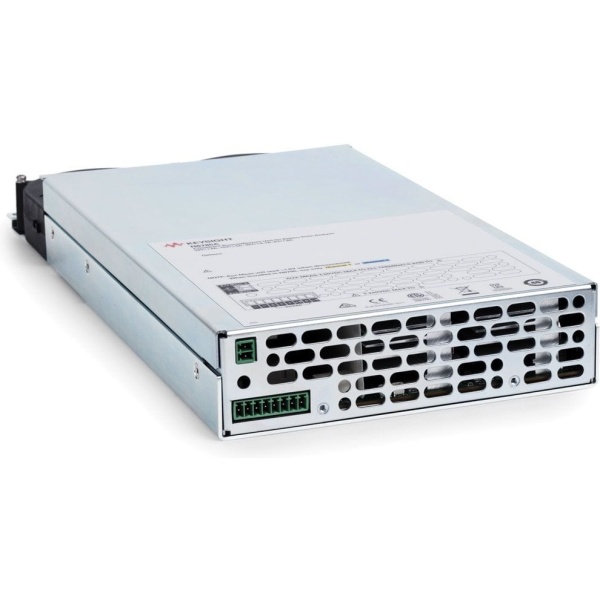

Keysight N6785A

Product Highlights

Output ratings:

• Voltage: 20 V / 15 V / 10 V / 6 V
• Current: ± 4 A / ± 5 A / ± 6.7 A / ± 8 A
• Power: Up to 80 W

Output voltage ripple and noise (PARD) from 20 Hz – 20 MHz:

• CV peak-to-peak: 15 mV
• CVrms: 1.5 mV

Programming accuracy (at 23°C ± 5°C after 30 minute warm-up. Applies from min. to max. program):

• Voltage, 20 V, 15 V, 10 V, and 6 V ranges: 0.025% + 1.8 mV
• Current, 4 A, 5 A, 6.7 A, and 8 A ranges: 0.04% + 1.4 mA

Measurement accuracy (at 23°C ± 5°C)

• Voltage, 20 V range: 0.025% 1.8 mV
• Current, 8 A range: 0.04% + 1.5µA
• Current, 100 mA range: 0.025% + 10µA
• Current, 1 mA range: 0.025% + 100 nA
