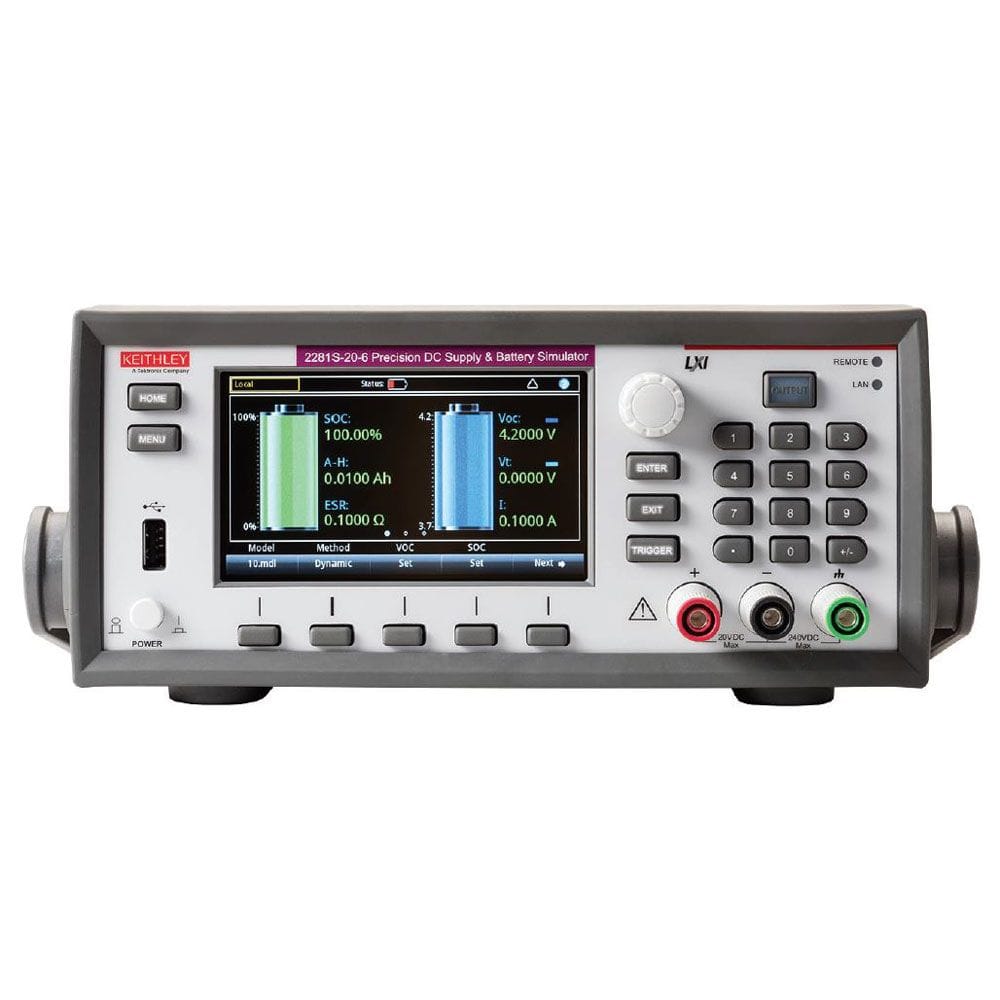

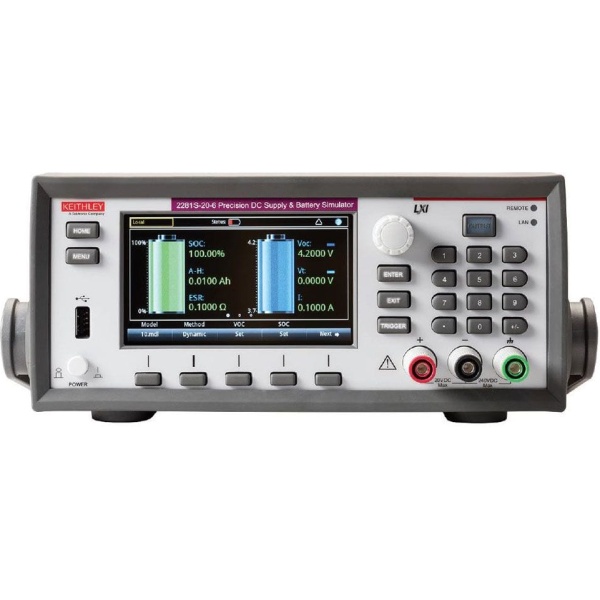

Keithley 2281S 20 6

Product Highlights

The Series 2281S single channel, precision DC supply and battery simulator innovatively integrates the functions of high-precision power supply, battery test, and battery simulation. It is able to analyze the DC consumption of a device under test ,test a battery, and generate a battery model based on battery charging process and simulate a battery based on the battery model. The 2281S-20-6 can output up power to 20V and 6A and sink current up to 1A.

• Create, edit, import, and export battery models
• Measure voltage and current with 6.5-digit resolution
• Output up to 120W of low noise, linear regulated power
• Provide two modes of simulation – dynamic and static
• Built-in graphing simplifies analyzing trends or displaying voltage or current waveforms
• Digital I/O for direct communication with other devices and instruments
• GPIB, USB, and LAN interfaces
• Battery test with charging and discharge function
• Measure charge/discharge current and voltage
