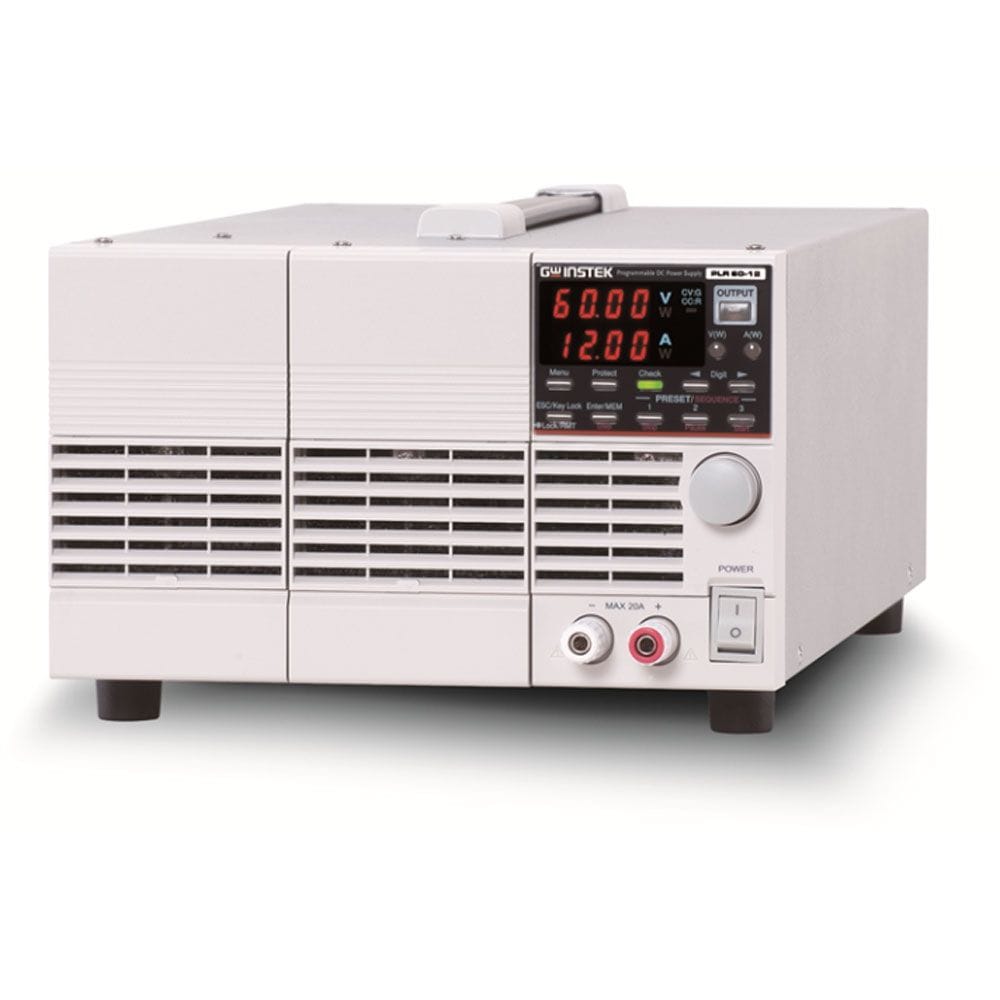

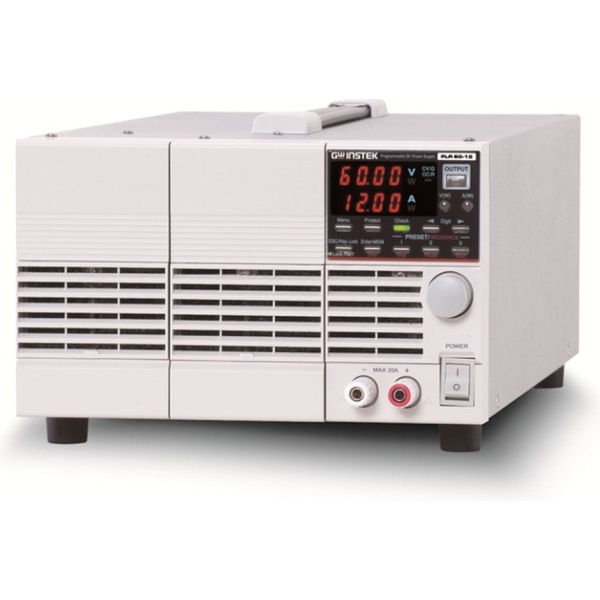

GW Instek PLR 36 20

Product Highlights

• Output Voltage Rating：20V / 36V / 60V
• Output Power：360W / 720W
• Low Ripple and Noise (0.5mVrms/ 10mArms)
• Fast transition recovery time(100us)
• Maximum 2 units in series connections or 3 units in parallel connections
• Select the setting digits for voltage and current(coarse/ fine volume control)
• Panel Lock Function
• 3 set of preset function
• Output off timer function(Range:1 min to 1000 hours & 59mins)
• CC priority function(prevent overshoot & inrush current)
• Sequence function of PC editing(Max.: 1000 steps/ Min. step period: 50ms)
• Protection: OVP, UVP, OCP, remote sensing(Terminal open)
• External Analog Control Function
• PC Remote Interface (Standard)：RS-232; (Optional) ： GPIB / USB / LAN
• CE Compliance
• Output channel 1
• Output voltage 0~36V
• Output current 0~20A
• Output power 720W

Each Unit Includes

• User Manual (CD)
• AC Power Cord
• Rear Output Terminal Cover
• Bolt set [Hexagon head bolt (P-3) x2, Flat washer x2, Hexagon nut x2]
• Output-grounding cable
