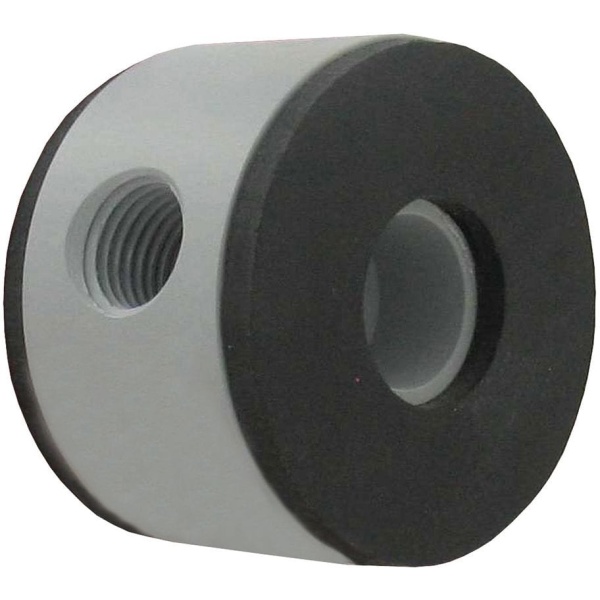

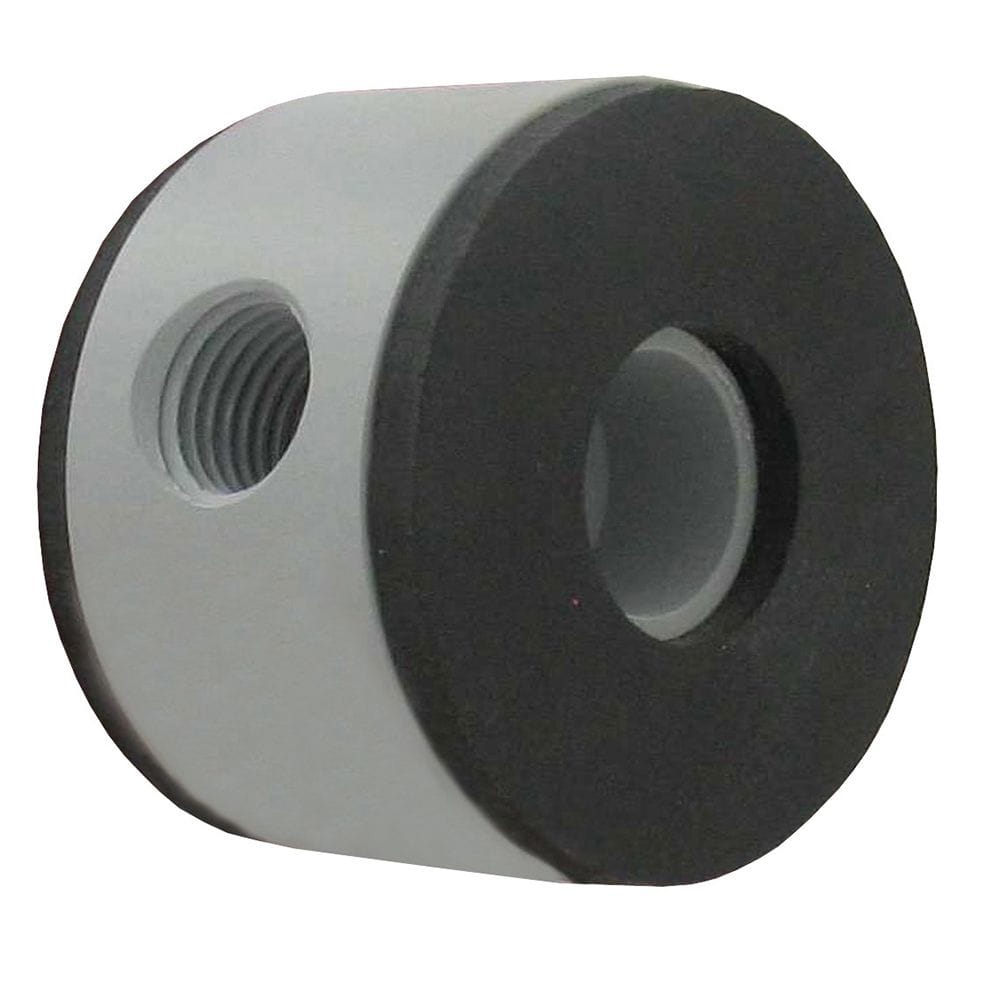

The Series PE Orifice Plate Flowmeter offers one-piece PVC construction incorporating a unique holder or carrier ring containing metering taps and integral gaskets. Unlike a standard orifice plate, the Series PE is a true primary element including the various components for differential pressure measurement. It was designed for use wherever there is an application for a conventional flow orifice plate. It can also be used in place of other primary differential producers for efficiency and cost effectiveness. The Series PE is available in line sizes from 1/2″ to 24″ and used for air and most gases. It meets or exceeds ASME, AGA @ ISO standards.
Product Highlights
- Mounted with standard flanges
- Standard “corner tap” configuration
- Corrosion free material
- Simplified installation
- Built in metering taps (1/4″ female NPT STD)
- Proven through a wide range of applications for accuracy and energy efficiency
- Assures long term reliability and accuracy
- Excellent chemical resistance
- Weather resistant
- Flame retardant (without factory gaskets)
- Low friction (minimum wear)
- Orifice plate thickness 1/4″ offering greater stability
- 14″ line size
- 9.300″ bore
- 0.7 Beta
- water capacity: 320″ d.p. W/C, 6052.57 GPM flow
- air capacity: 15251.50 SCFM @ 14.7 psia, 28262.66 SCFM @ 20 psig, 50437.78 SCFM @ 100 psig
- 9 lb
