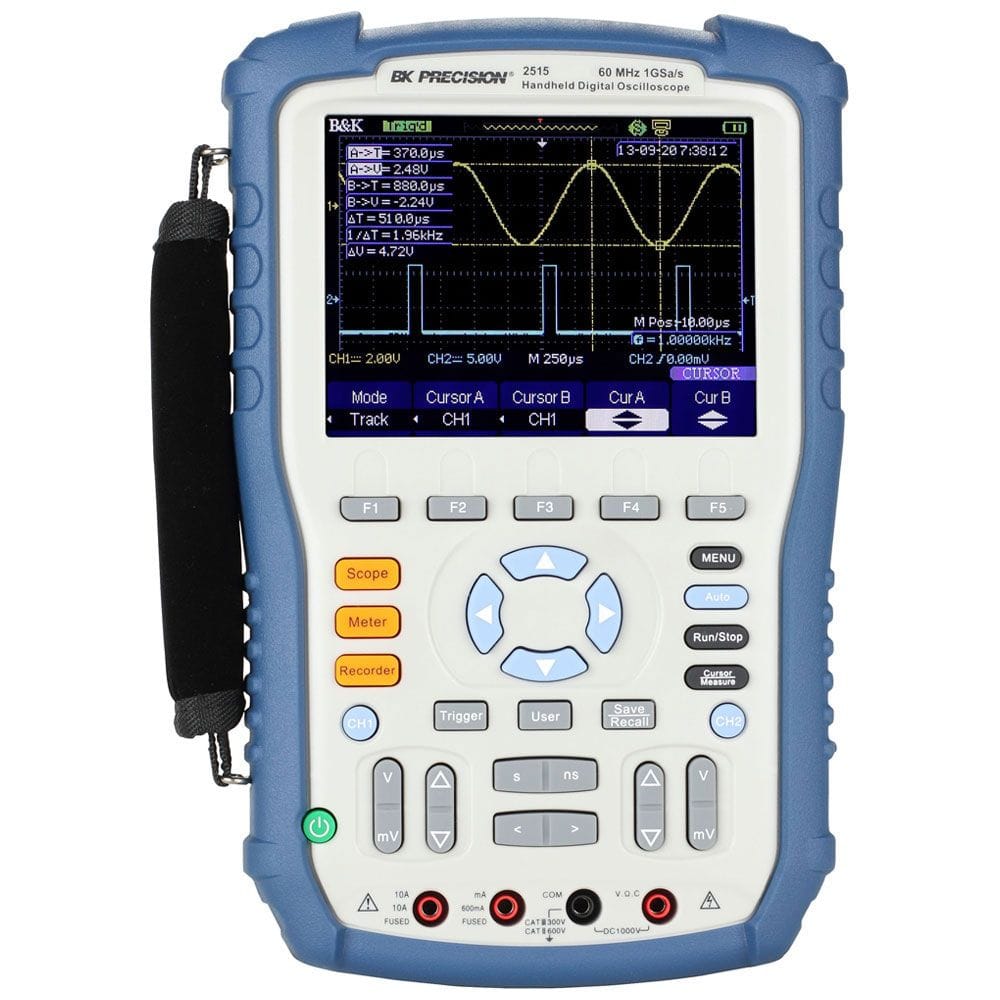

BK Precision 2511

Product Highlights

The 2510 Series handheld digital storage oscilloscopes provide floating measurement and recorder capabilities with a built-in digital multimeter (DMM), all in one portable and lightweight package. These versatile 60 MHz and 100 MHz bandwidth scopes offer 1 GSa/s sample rates, 2 Mpts waveform memory, 32 automatic measurements, and multiple recording functions to capture transient or long-term signal behavior. The 2510 Series allows engineers and technicians to make accurate and safe measurements when the signal reference is floating.

• 60 MHz and 100 MHz bandwidth
• 1 GSa/s sample rate
• Isolated 600 V CAT III input channels (models 2515/2516)
• 2 Mpts deep memory
• 32 automatic measurements
• FFT plus four additional math functions
• Built-in 6000-count DMM measures DC/AC voltage, DC/AC current, resistance, capacitance, diode, and continuity test
• Dedicated current measurement terminals
• Recorder and trend plot functions to log data
• PC software that lets you remotely control the oscilloscope and capture, save, and analyze waveform data
• USB host port for convenient storing and recalling of waveform data, setups, and screenshots on a USB flash drive
• Standard mini-USB device port for remote PC control
