Description

Product Highlights

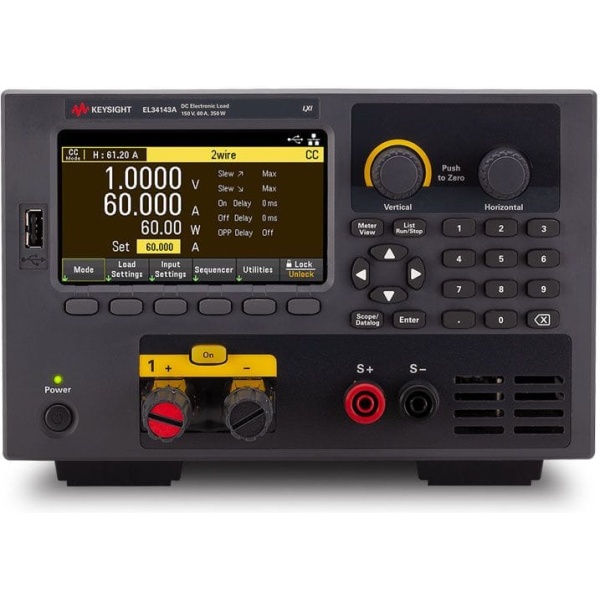

The EL30000 Series bench DC electronic loads provide superior performance in compact bench form factor. A single and dual-channel model is available with up to 600 W – ideal for design verification of consumer power supplies, batteries, battery modules, solar panels, LED drivers, and power converters. You can easily characterize wide-bandgap semiconductor components such as MOSFET and IGBT.

The EL30000 Series bench DC electronic loads are fully SCPI programmable with built-in USB, LAN, and optional GPIB interfaces. Advance features include scope view, data logging, sequencing, and more, enabling you to measure, capture, and quickly display your results.

Measures accurately

  • Integrated voltmeter and ammeter
  • Precise programming / readback accuracy
  • Built-in 2-wire or 4-wire remote sense technology

Captures, stores, and transfers dynamic waveforms

  • Data logger that is configurable
  • Log voltage, current and energy
  • Internal or external memory storage
  • Export to .CSV for post analysis

Displays like an oscilloscope for precise analysis

  • Performs precise transient analysis with scope function
  • Digitizes voltage and current
  • Displays results on a 4.3-inch color LCD screen

Advanced characterization

  • Use operating modes: constant current (CC), constant voltage (CV), constant resistance (CR), constant power (CP)
  • Improve measurements with low current range
  • Dynamic load profiles with List (continuous, pulse, or toggle)
  • Adjust transient steps with programmable slew rate
  • Modern connectivity: LAN (LXI Core), USB and GPIB (optional)
